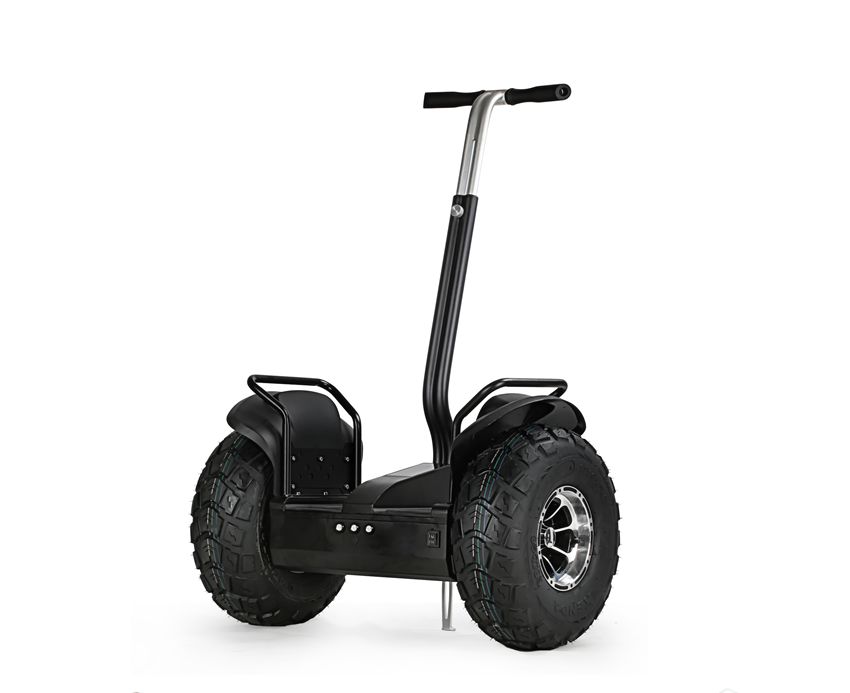

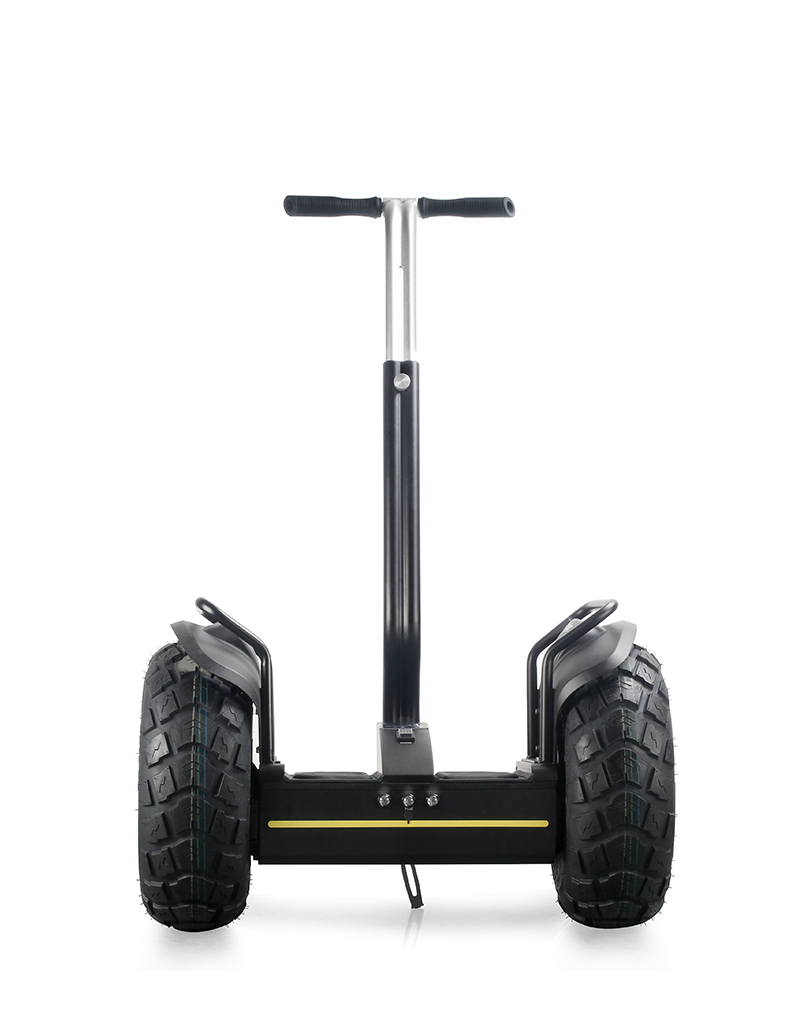

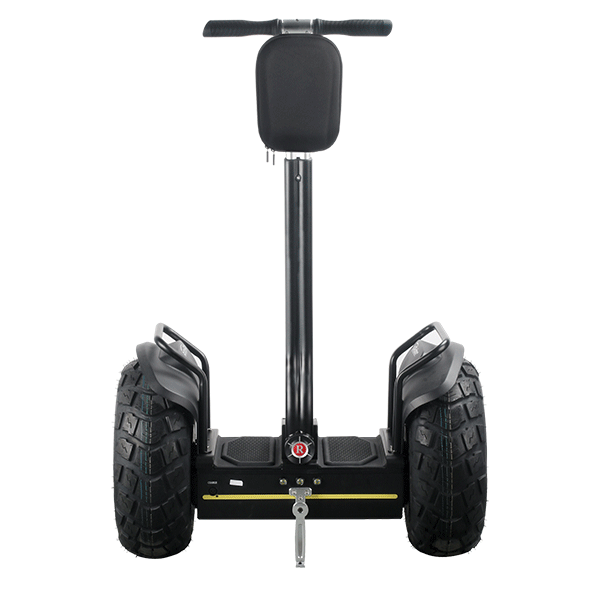

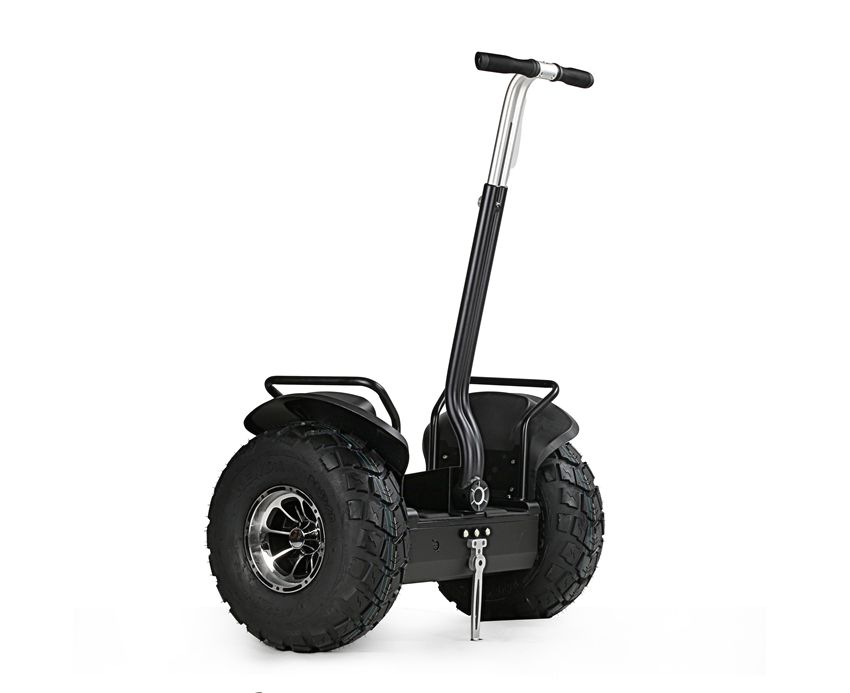

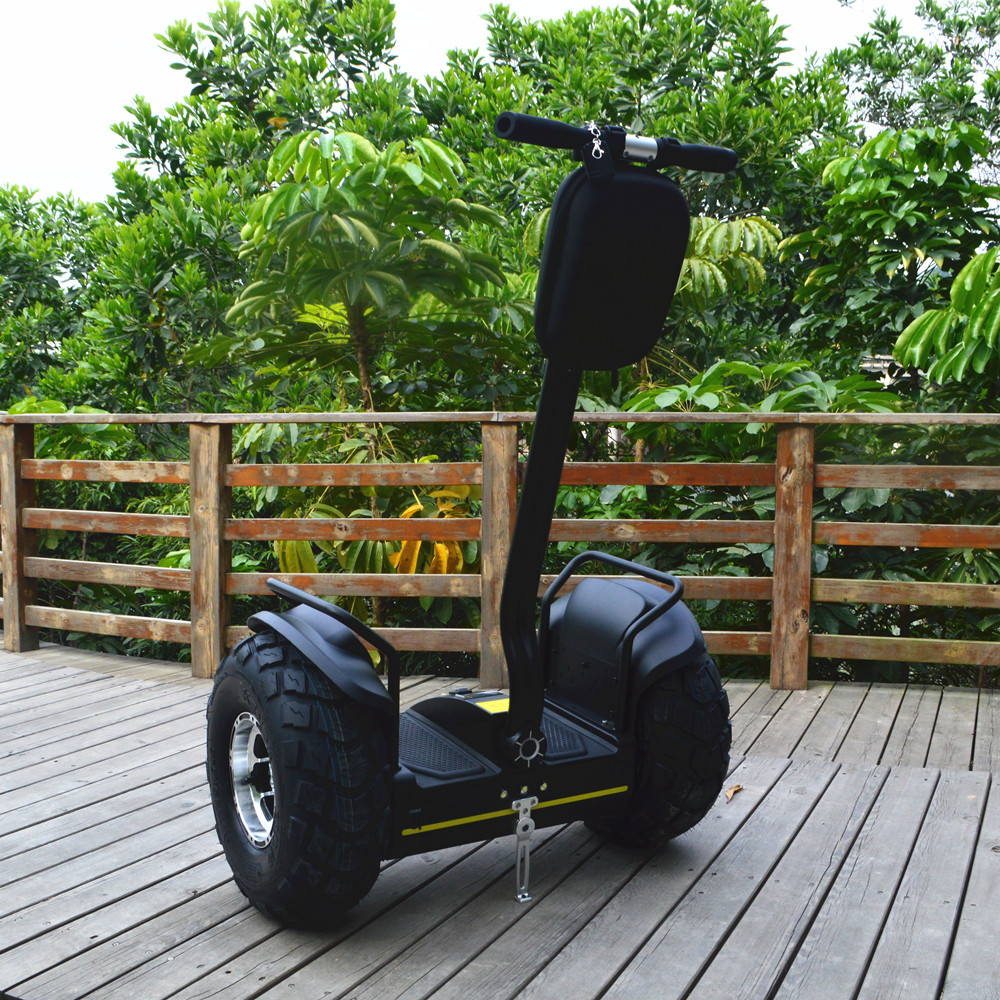

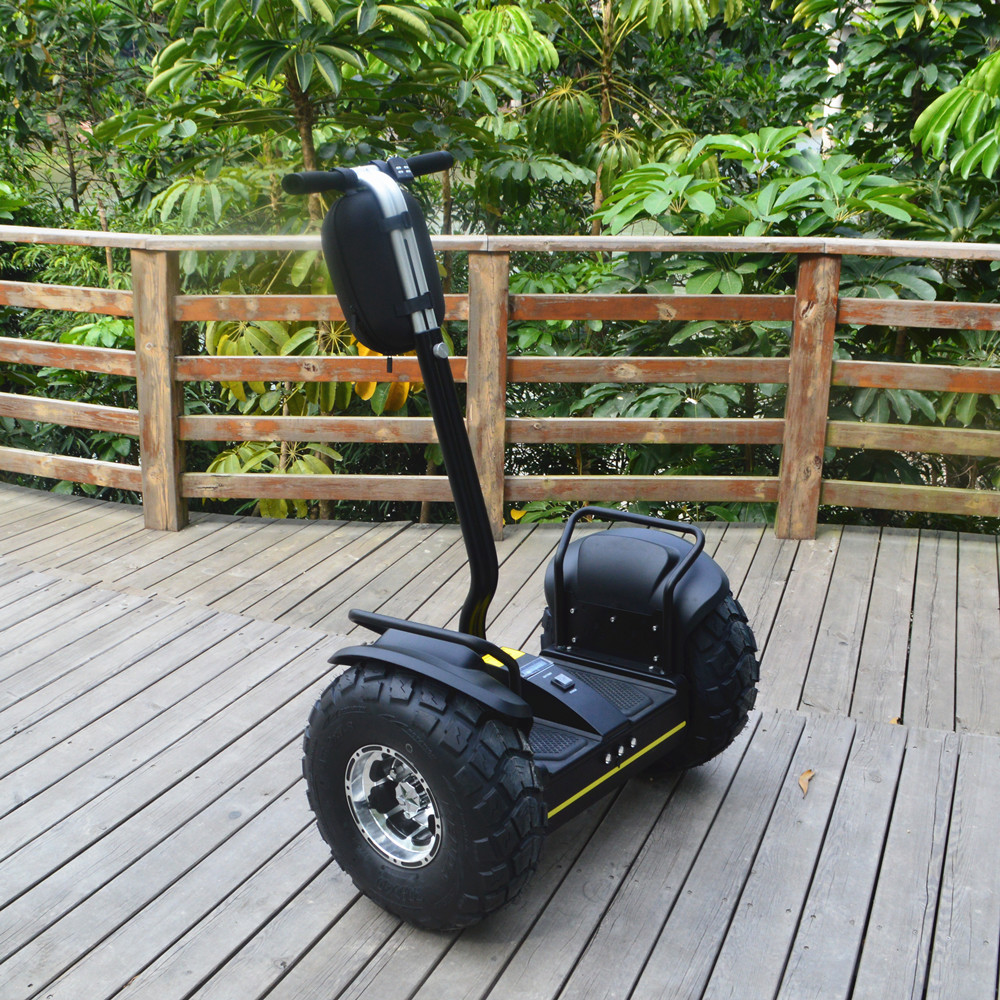

Off Road Self Balancing Electric Scooter
Model No.ESOI-L2
Max cruise speed: 20km/h
Max load: 130kg
Max. Mileage: 35-40 km
Max climb capability: 45 degree
Charging time: 5-6H Voltage: 100 v-240 v
Battery: Lithium battery, 72V.8.8Ah Samsung or LG cell, with current protection board
Power: two imported DC Motor(max:2000W), DC servo drives
Off Road Self Balancing Electric Scooter ESOI-L2
Features of model ESOI-L2
1. New steering mechanism, giving a much more stable ride and a faster response
2. Updated processed motherboard, making it safer and easier to control.
3. Waterproof throughout, an improvement on the old model.
4. Advanced design for steering and handling, the overall look is a big improvement.
5. It has a light exquisite steering mechanism, enabling a more flexible turning circle.
6. The new model has 4 floor detectors, improving the safety and stability, as a result the rider will not fall.
7. Adjusted big power motor. Max power can achieve 2000W overall, making it easy to climb continuously an a 30 degree slope.
8. A siren alarm sounds as a reminder to the rider as of the state of scooter

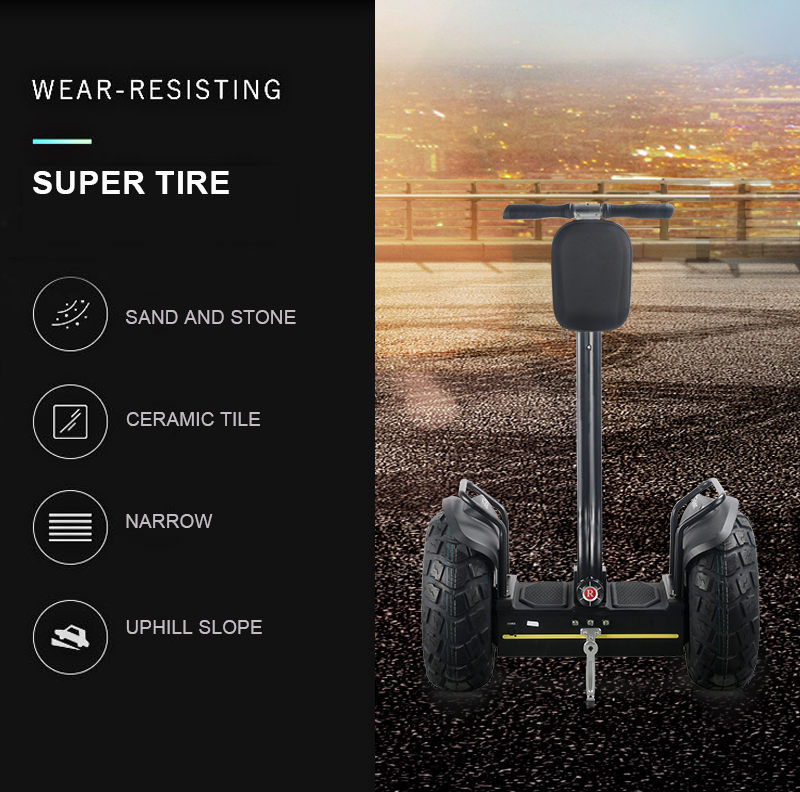

9. GPS tracking is optional 10. High quality wheel with tires to suit both racing and off road.
SPECIFICATION
ESOI(L2)-Specifications | ||||
Gross Weight/Net Weight | 57kg/48kg | |||

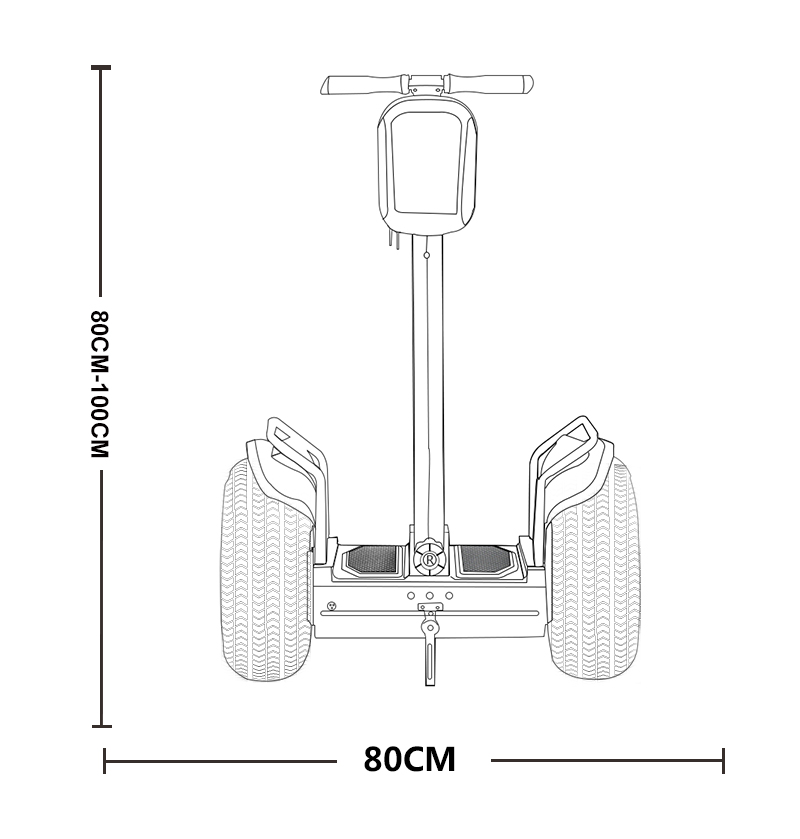

Dimension/Size | 85*45*58 cm | |||
Max. cruise speed | 20km/h | |||
Max. load | 130kg | |||
Max. mileage | 35-40km | |||
Max. climb capability | 45 degree | |||
Min. turning radius | 0 degree | |||
Charging time | 5-6h | |||
Battery | 72V, 8.8Ah ( lithium battery),633Wh | |||
Voltage | 100v-240v | |||
Max. power | 2000w (2*1000w/pc) or 4000w (2*2000w/pc) | |||
Life of battery | 1-3 years | |||
Tire | 19inches/48cm vacuum | |||

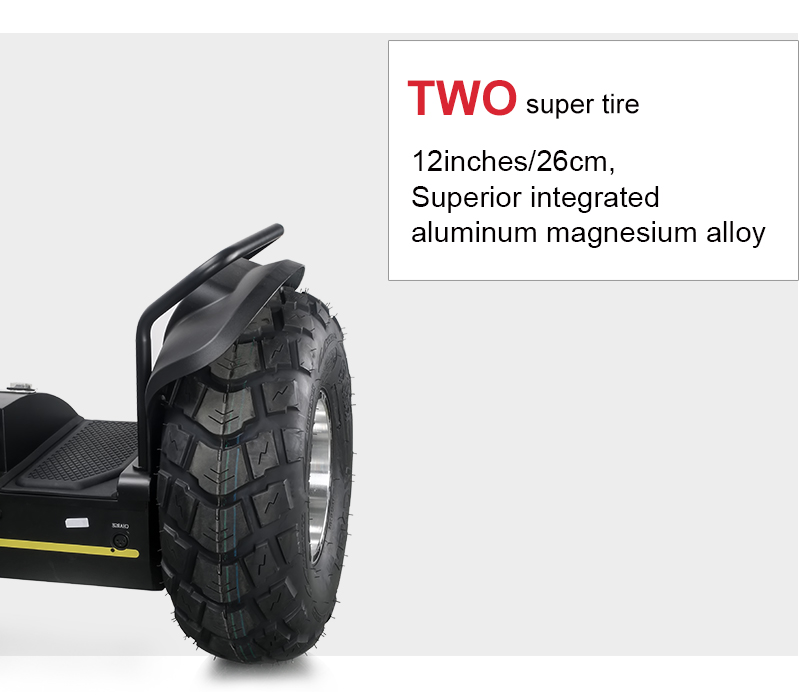

Wheel | 12inches/26cm,Superior integrated aluminum magnesium alloy | |||
Height of handle | 800-1100 mm adjustable | |||

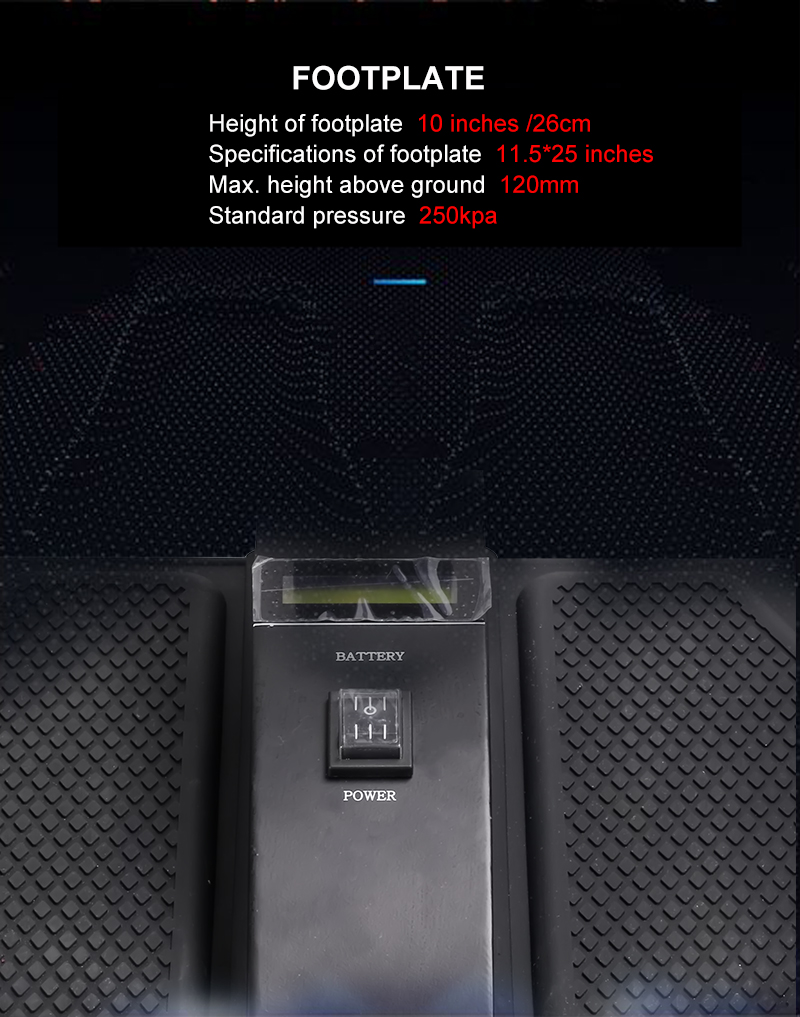

Height of footplate | 10 inches /26cm | |||
Specifications of footplate | 11.5*25 inches | |||
Max. height above ground | 120mm | |||
Standard pressure | 250kpa | |||
Colors | 7 colors available (BLK,WHT,SIL,RED,GREEN,BLUE,YELLOW) | |||
Certifications | CE, FCC, ROHS | |||
HS CODE | 8711901090 | |||
Packing Detail of Escooter(ESOI-L2) | ||||
Inner: Carton | Outer: Plywood box | |||
CTN dimension: | 90*52*63cm | |||
Volume: | 0.3cbm (About 72 PCS per Container (20 feet#) | |||
Packing list (Standard kits/parts) | ||||
Handle: 1 PC | Remote/Key: 2 PCS | User manual: 1 PC | Fender: 2 PCS | |
Driving handle: 1 PC | Pedal mat: 2 PCS | Tire: 2 PCS | ||
Battery charger: 1 PC | ||||
Front Bag,Helmet,Knee and elbow pad can be optional for selling as acceccories.
Applications
Personal transportation
Public security police
Metro deployment
Airport customs
Large venues
Tourist resort
Golf field
